Optimized as a direct-view screen so crews and passengers can watch content or live feeds without additional repeater hardware.

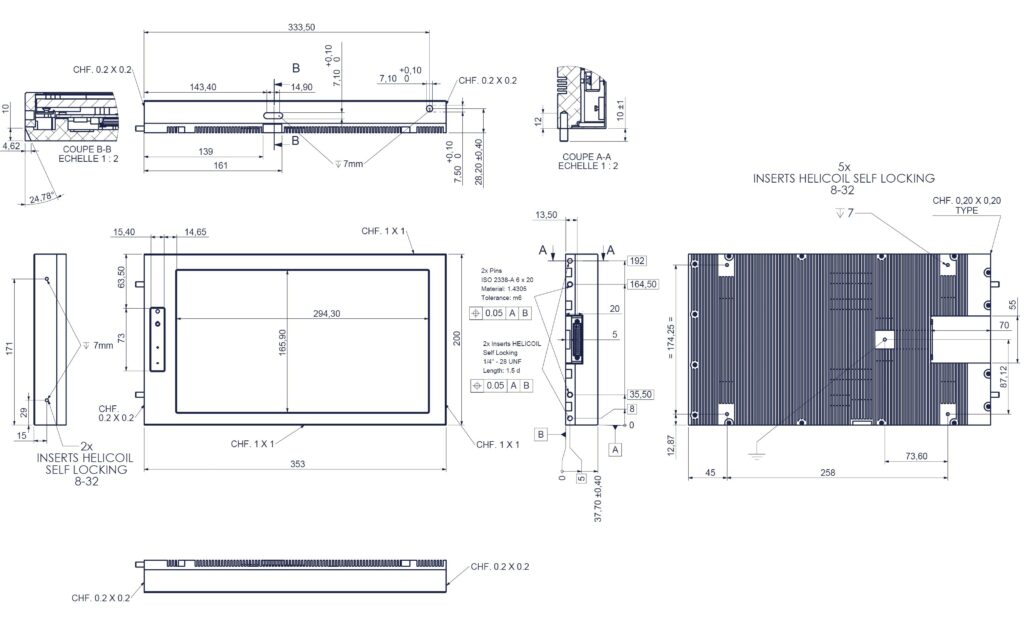

Display 13.3 is a multi-purpose ruggedized display specially designed for avionics applications. Customizable HMI software can be developed according to your specifications and then downloaded into the display. User can select the video source and display up to 4 different sources on one display. Several displays can be chained without any additional device (e.g. one external IP camera displayed on all screens), and one storage media can be shared by multiple displays. External camera can be powered using 12 VDC output or Ethernet POE. Tactile buttons and a luminosity sensor enable to manually or automatically control the brightness of the screen. The product is designed to be easily integrated into In-Flight Entertainment applications and Cabin Management Systems like cabin surveillance, full cabin control, or displaying multimedia contents.
Display 13.3 is a multi-purpose ruggedized display specially designed for avionics applications. Customizable HMI software can be developed according to your specifications and then downloaded into the display. User can select the video source and display up to 4 different sources on one display. Several displays can be chained without any additional device (e.g. one external IP camera displayed on all screens), and one storage media can be shared by multiple displays. External camera can be powered using 12 VDC output or Ethernet POE. Tactile buttons and a luminosity sensor enable to manually or automatically control the brightness of the screen. The product is designed to be easily integrated into In-Flight Entertainment applications and Cabin Management Systems like cabin surveillance, full cabin control, or displaying multimedia contents.
| Temperature and Altitude | 4 |
|---|---|
| Temperature Variation | 5 |
| Humidity | 6 |
| Operational Shocks and Crash Safety | 7 |
| Vibration | 8 |
| Fluid Susceptibility | 11 |
| Sand & Dust | 12 |
| Magnetic Effect | 15 |
| Power Input | 16 |
| Voltage Spike | 17 |
| Audio Frequency Conducted Susceptibility - Power Inputs | 18 |
| Induced Signal Susceptibility | 19 |
| Radio Frequency Susceptibility (Radiated and conducted) | 20 |
| Emission of Radio Frequency Energy | 21 |
| Electrostatic Discharge | 25 |
